DIY frame/fork/stem/handlebar/crank test system

The test system consists of 3 parts: frame (builder design and constructed by aluminum profiles)

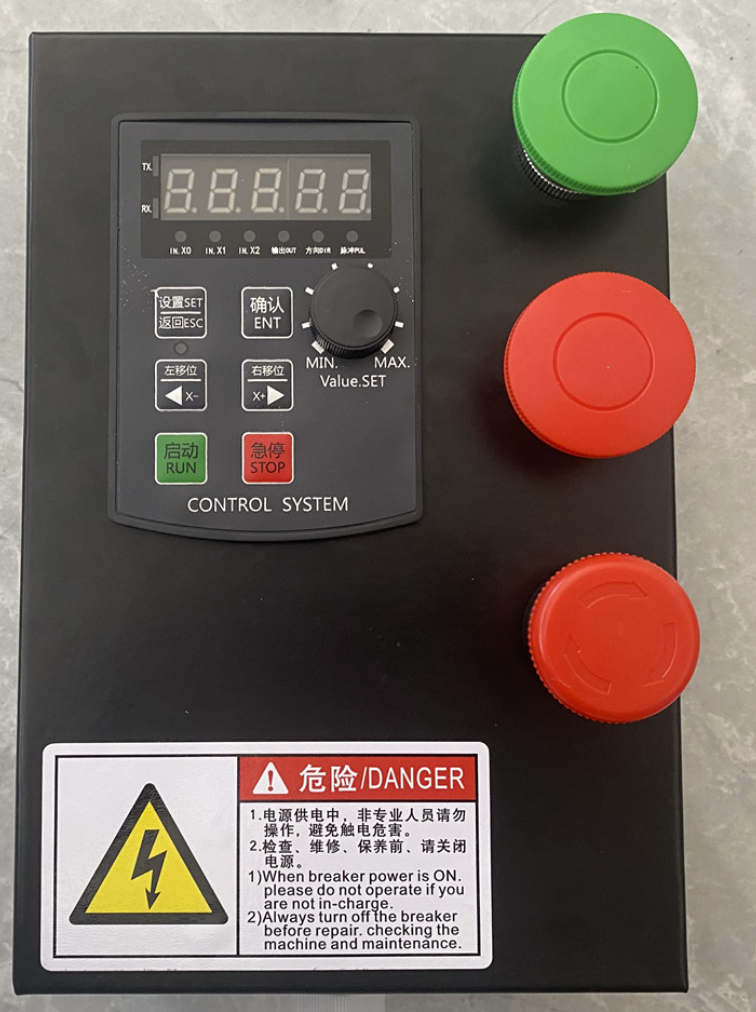

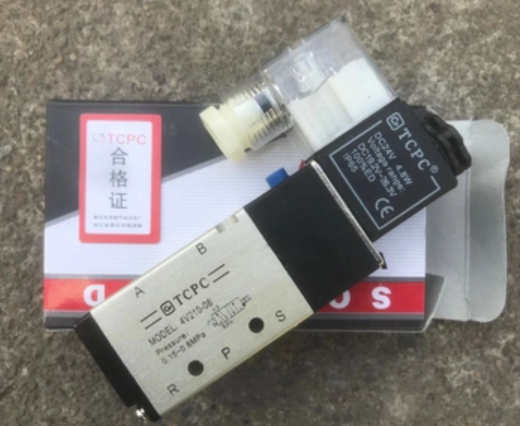

pneumatic unit (PLCD controls multiple solenoid valves, solenoid valves control the movement of the cylinder, and the thrust of the cylinder is adjusted by the pressure of the air compressor filter)

data acquisition unit (It is connected between the fixture and the cylinder, the sensor output to the transmitter, the transmitter is transferred to the USB converter, then to the computer, and the computer software cooperates to collect data)



two air cylinder plan:

PLC x1, PLC power x1, PLC box x1, electromagnetic valve x2,SMC MDBB80-50/63/80/100Z air cylinderx2, compressor oil water separator x1, IKO fisheye joints x2, Accessories(trachea fittings hose etc)



1000kg tension sensor x2, two-channel signal processor x1, processor power x1, USB adapter x1



 4 air cylinder plan:

PLC x1, PLC power x1, PLC box x1, electromagnetic valve x4,SMC MDBB80-50/63/80/100Z air cylinder x4, compressor oil water separator x1, IKO fisheye joints x2, Accessories(trachea fittings hose etc)



1000kg tension sensor x4,4 channel signal processor x1, processor power x1, USB adapter x1



*SMC air cylinder:https://ca01.smcworld.com/catalog/en/actuator/MB-MDB-Z-E/6-2-1-p0387-0434-mb_en/index.html#target/page_no=30

*idea for mounting cylinder:https://ca01.smcworld.com/catalog/en/actuator/MB-MDB-Z-E/6-2-1-p0387-0434-mb_en/index.html#target/page_no=2

*

*
